54.6V 4A Lithium-ion Battery Charger for 13S 48V Li-ion Battery Packs - Smart XLR Charger with Auto-Shutoff - Perfect for Ebikes, Scooters, and Electric Vehicles

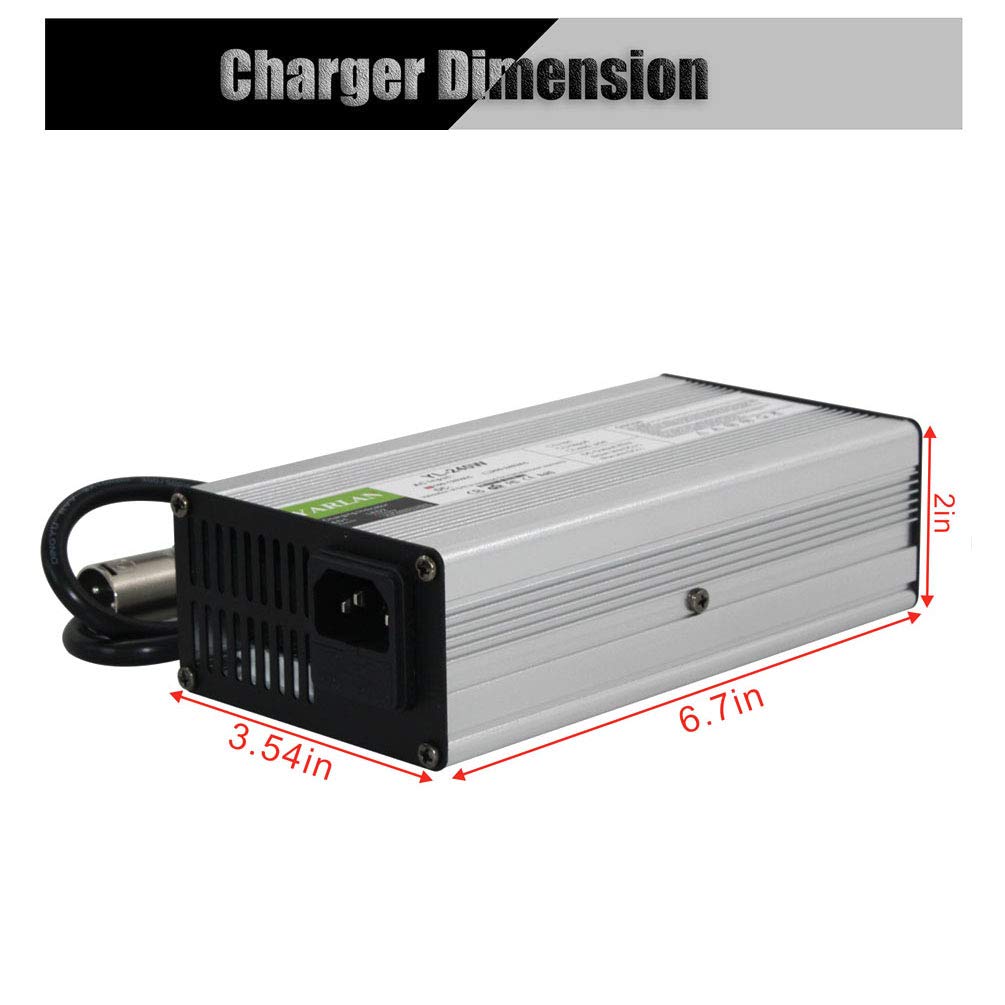

Specification:Product Name: 54.6V 4A ChargerModel: YL-240WDimensions: 170x90x50mmSuitable for Battery type: 13S 48V Li-ion BatteryWorking power: 100-120Vac, 50 ~ 60HzOutput voltage: 54.6V Output current: 4ABattery Protection: SCP,OVP,OCP,OTPCharging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent chargingCharging efficiency: ≥85% (full load)Working temperature: -5 ℃ ~ +40 ℃Storage temperature: -40 ℃ ~ +70 ℃AC power cord, DC connector can be customized.Operating Instruction1. Before charging, please connect the DC terminal to battery first, and then connect the AC terminal.2. After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.3. No charging or after charging complete, be sure to unplug the DC terminal and AC terminal.LED Indicator:LED 1 red: Power on.LED 2 red: Battery being charged.LED 2 Flash: Battery will be charged completely soon.LED 2 green: Battery has been charged completely.Package:1* 54.6V 4A charger1* US standard power cable1* Operating manual2* Fuse for replacing

Output 54.6V 4A; Input 100-120Vac, 50~60Hz

Provide 1* fuse and 1* American standard power cord

Aluminum housing, LED indicator, beautiful and durable, faster cooling speed

Intelligent charging mode constant current - constant voltage - trickle to ensure that the battery is fully charged

Overvoltage protection, overcurrent protection, short circuit protection, reverse protection
